Alcohol Reactions: Aldehyde/Ketone formation from Diols using Sodium Periodate (NaIO4)

Sodium periodate (NaIO₄) cleaves 1,2-diols under neutral aqueous conditions, forming complementary aldehyde/ketone fragments without involving radicals or carbocations. Two adjacent hydroxyl groups chelate iodine(VII), generating a cyclic periodate ester that fragments to carbonyls while iodine(VII) is reduced to iodine(V) in iodate (IO₃⁻). Cyclic diols can open to dialdehydes or mixed products when their geometry allows the cyclic intermediate. For upstream diol installation compare the OsO₄ syn-dihydroxylation playbook, and for ordinary alcohol oxidation without this C–C cleavage, see the PCC/DMP oxidation guide.


Quick Summary


  • Reagents & conditions: NaIO₄ (≈1.0 equiv per C–C cleavage) in H₂O, H₂O/MeOH, H₂O/acetone, or THF/H₂O; 0–25 °C; neutral to mildly buffered media.

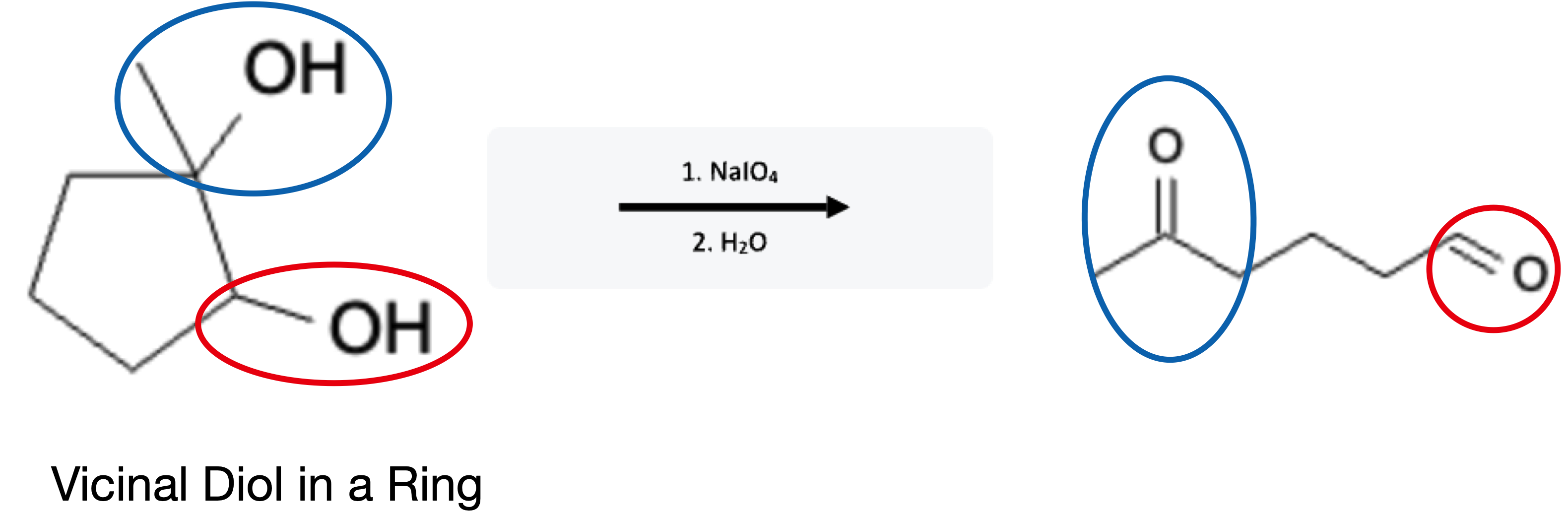

  • Outcome logic: Each diol carbon becomes a carbonyl carbon: two retained H atoms give formaldehyde, one H gives an aldehyde, and no H gives a ketone. Cyclic diols open across the cleaved bond.
  • Geometry requirement: Both hydroxyls must chelate iodine simultaneously (cis, syn, or rotatable gauche arrangement). Diols unable to reach that geometry resist cleavage; trans-cyclohexane-1,2-diol can react under suitable conditions.
  • Selectivity: Closed-shell polar mechanism; no carbocation shifts in the usual cleavage. Simple aldehyde products normally survive; remaining adjacent oxidizable groups can permit further cleavage.
  • Comparisons: Pb(OAc)₄ executes similar oxidative cleavage under non-aqueous conditions; OsO₄/NaIO₄ (Lemieux–Johnson) pairs dihydroxylation followed by this NaIO₄ cleavage.

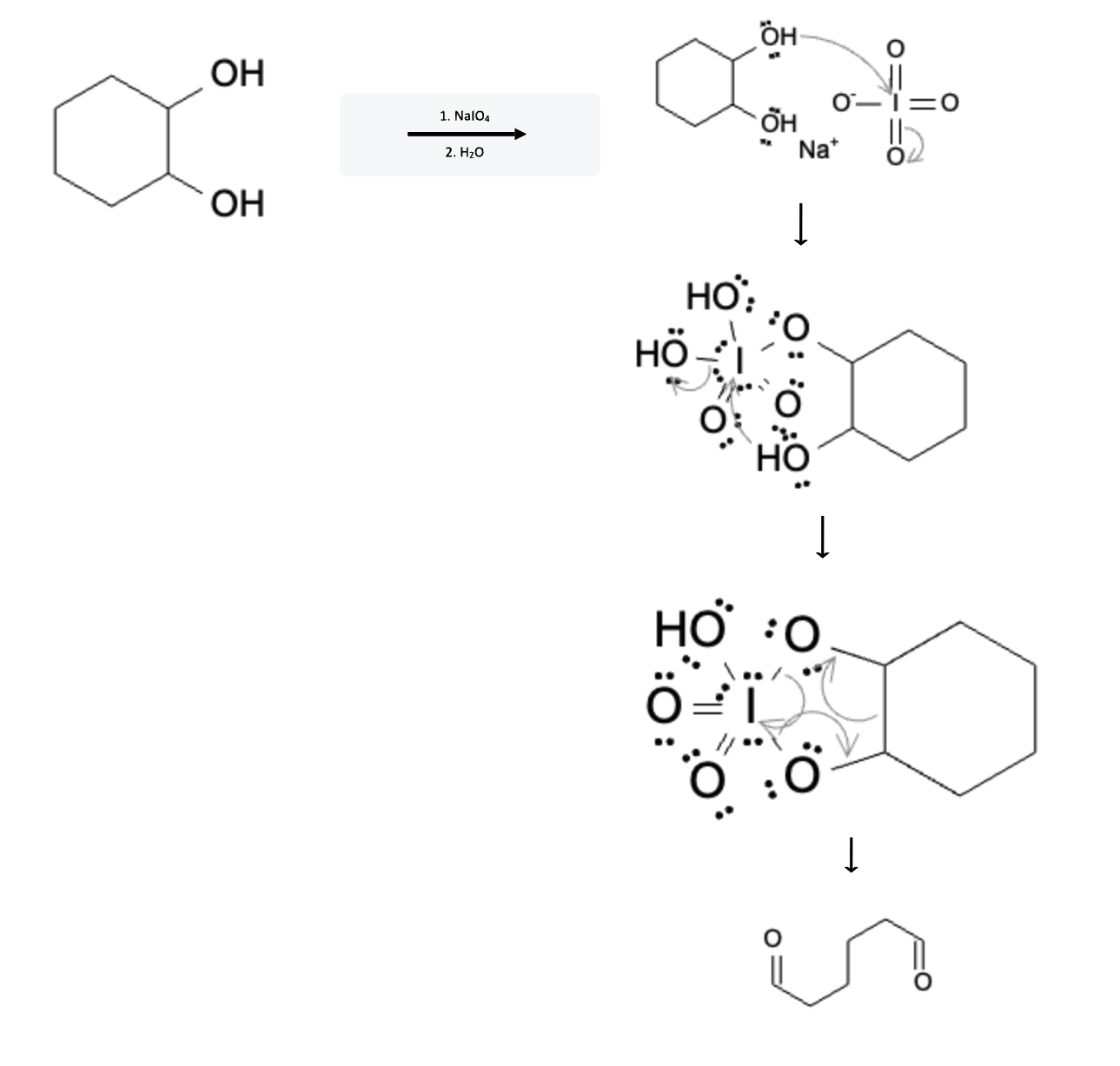

Mechanism — NaIO₄ (4 Frames)


Try the substrate inputs in the Mechanism Solver. The link opens trans-cyclohexane-1,2-diol (SMILES O[C@@H]1CCCC[C@H]1O), which is also cleaved and is the pair with a reviewed solver mechanism. The figures here use cis-cyclohexane-1,2-diol (SMILES O[C@H]1CCCC[C@H]1O). For diol installation, see the OsO₄ syn-dihydroxylation guide. The cyclic ester is a formal teaching representation; protonation and hydration equilibria depend on the medium.

Step 1 — Vicinal diol and periodate

cis-Cyclohexane-1,2-diol, with both hydroxyls on the same face, is the substrate for periodate cleavage.
The two adjacent OH groups can reach iodine(VII). Ligand exchange and proton transfers lead to the cyclic diester shown next.

Step 2 — Cyclic periodate ester

Formal monoanionic cyclic I(VII) diester with two ring oxygens, two oxo groups and O minus; sodium counterion omitted.
Ligand exchange and proton transfers complete the five-membered C–O–I–O–C ring. This monoanionic diester representation accounts for loss of one water overall from diol plus IO₄⁻; Na⁺ is a spectator.

Step 3 — Periodate collapse cleaves the C–C bond

Three electron-pair arrows form both carbonyls, cleave the diol C–C bond and return one I–O pair to iodine.
Coupled electron flow breaks C–C and both I–O bonds to the diol, forming two C=O bonds and iodate. The organic fragment retains six carbons; iodine is reduced from VII to V.

Step 4 — Carbonyl product

Hexane-1,6-dial, the six-carbon ring-opening product.
Hexane-1,6-dial is the organic product. Iodate is formed in the cleavage step; a separate hydrolysis is not required to create its two carbonyl groups.


Mechanistic Checklist


  • Identify a geometry that permits cyclic periodate-ester formation before cleavage; cis/gauche proximity helps, but the products are carbonyls rather than a syn-addition pair.
  • Use closed-shell arrows—no radical or carbocation intermediates appear in the Malaprade sequence.

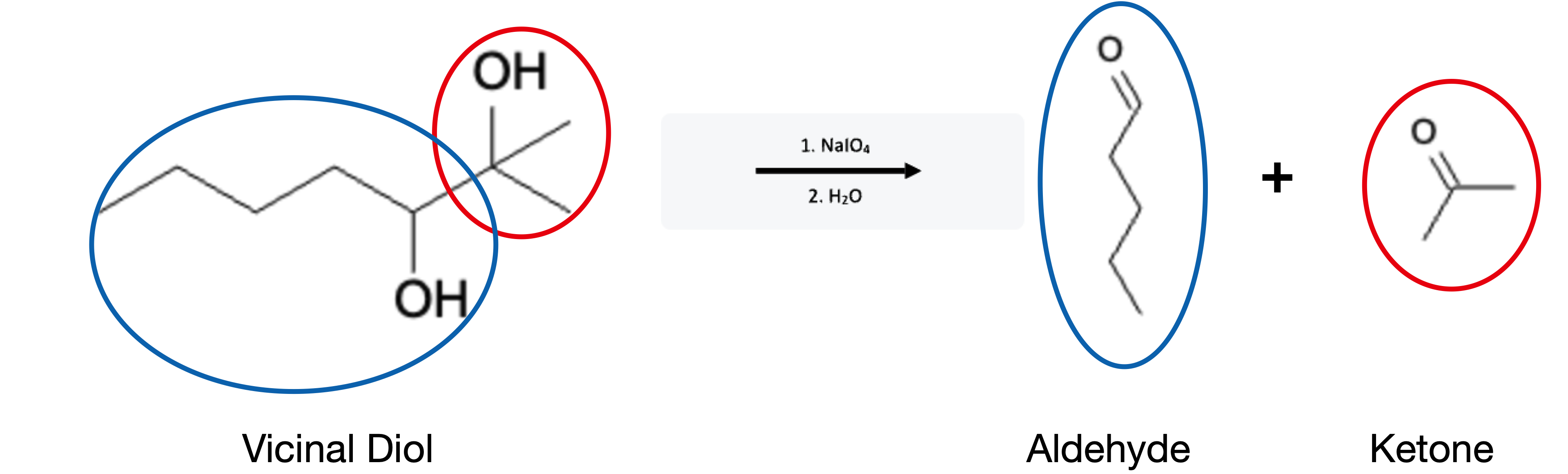

  • Assign products by the H atoms retained at each former diol carbon: CH₂OH → HCHO, CH(OH)R → RCHO, C(OH)R₂ → R₂CO.
  • Truly constrained diols that cannot form the cyclic ester resist cleavage. Do not extend this to every trans diol: trans-cyclohexane-1,2-diol also reacts under suitable conditions.
  • Compare with Pb(OAc)₄ for non-aqueous oxidative cleavage, or OsO₄/NaIO₄ when starting from an alkene.


Worked Examples


Explore names and structures with the IUPAC Namer for naming practice; track the OH-bearing carbons when assigning cleavage products.

Ethylene glycol → 2 × formaldehyde

Ethylene glycol molecule (OCCO)
Ethylene glycol (SMILES OCCO)
Reagent card showing NaIO4, H2O, 0–25 °C
NaIO₄, H₂O, 0–25 °C
Formaldehyde molecule (C=O)
2 equivalents of formaldehyde — capture as DNPH, oxime, or bisulfite adducts.

Propane-1,2-diol → acetaldehyde + formaldehyde

Propane-1,2-diol molecule (CC(O)CO)
Propane-1,2-diol (SMILES CC(O)CO)
Reagent card showing NaIO4, H2O, 0–25 °C
NaIO₄, H₂O/acetone (1:1)
Acetaldehyde plus formaldehyde: two carbons plus one carbon from propane-1,2-diol.
Acetaldehyde + formaldehyde — the C3 substrate gives C2 + C1 fragments.

cis-Cyclohexane-1,2-diol → hexane-1,6-dial

cis-Cyclohexane-1,2-diol molecule
cis-Cyclohexane-1,2-diol (SMILES O[C@H]1CCCC[C@H]1O)
Reagent card showing NaIO4, H2O, 0–25 °C
NaIO₄, t-BuOH/H₂O (3:1)
Hexane-1,6-dial molecule
Hexane-1,6-dial — the ring opens across C1–C2; trans-diol reactivity depends on geometry and conditions.


Scope & Limitations


  • Excellent: Vicinal diols (acyclic or cyclic cis), α-amino alcohols, sugar derivatives after deprotection.
  • Sluggish: Diols heavily shielded by steric bulk or constrained against the cyclic-ester geometry; some trans diols react more slowly than their cis counterparts.
  • Functional-group tolerance: Neutral aqueous media tolerate esters, amides, ethers, carbamates, and most protecting groups; aldehyde products are normally preserved.
  • Multiple diols: Polyols cleave sequentially — meter NaIO₄ equivalents to avoid over-cleavage.


Edge Cases & Exam Traps


  • Terminal diols generate volatile formaldehyde — plan derivatisation (DNPH, oxime, bisulfite) if isolation is required.
  • Symmetric diols yield identical carbonyl fragments, simplifying structural assignments.
  • Fused or bridged ring systems open to unfamiliar topologies; track carbon numbering rigorously.
  • Protected diols (acetonides, cyclic carbonates) are inert until the protecting group is removed.
  • Accessibility and the ability to form a cyclic ester influence which diol reacts; check geometry and equivalents rather than assuming a universal site order.


Practical Tips


  • Dissolve substrates in H₂O/acetone, H₂O/MeOH, or THF/H₂O; maintain 0–25 °C to minimize over-oxidation.
  • Use ~1.0–1.2 equiv NaIO₄ per C–C cleavage; monitor by TLC, NMR, or iodate formation.
  • Quench oxidant with sulfite/bisulfite, filter iodine salts, then extract carbonyl products promptly.
  • Use the specified medium and avoid competing reductants: periodate is consumed as I(VII) is reduced to I(V), not regenerated in a catalytic redox cycle.
  • Volatile aldehydes (formaldehyde, acetaldehyde) are easiest to handle as derivatives or by in situ capture.


Exam-Style Summary


NaIO₄/H₂O cleaves vicinal diols through a cyclic periodate ester. Coupled C–C and I–O bond cleavage forms carbonyl fragments and iodate. Retained H atoms distinguish formaldehyde, other aldehydes and ketones. Geometry controls access to the ester; do not assume all trans diols are inert.
